Description

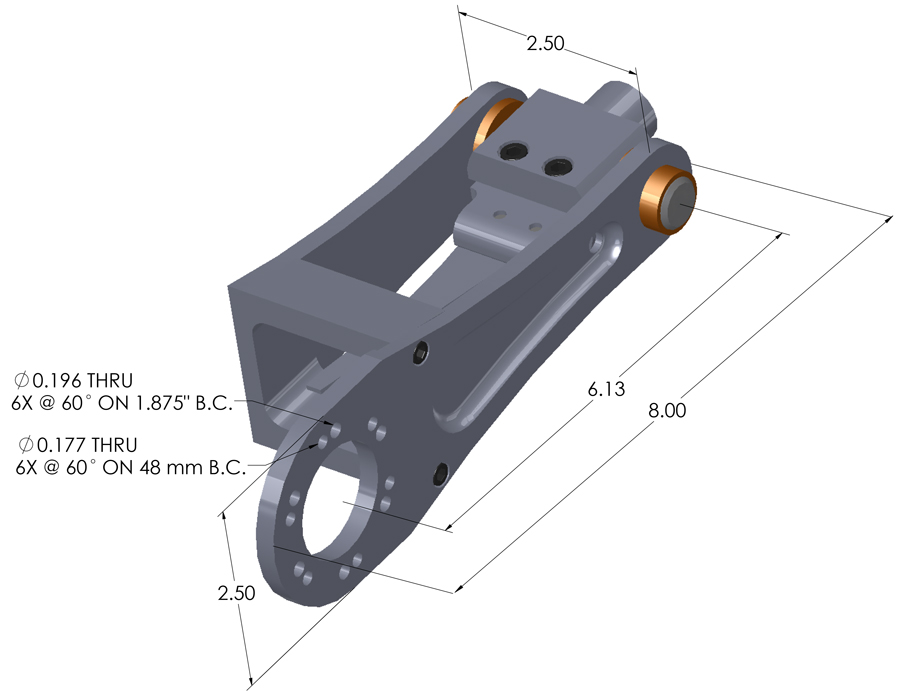

Designed specifically with the programmability of the Model 25SP, Model A25SB and Model A58SE encoders in mind, this spring-loaded mounting bracket fits 2.5” shafted encoders with servo mounts and 58 mm shafted encoders with clamping flanges. It allows convenient application of an encoder and measuring wheel solution directly to a surface being measured. The bracket features a torsion spring, adjustable to up to 10 lbs of force, which permits the encoder and measuring wheel to be mounted in almost any orientation, even upside down. The single pivot action allows the assembly to adjust travel and wheel pressure for variations in material height.
The EPC Programmable Linear Measurement Solution combines this bracket with your choice of several encoder and wheel options to create a flexible, robust measurement solution that can be fine tuned to meet the exact requirements of your application. See our ordering guide for more information.
