Description

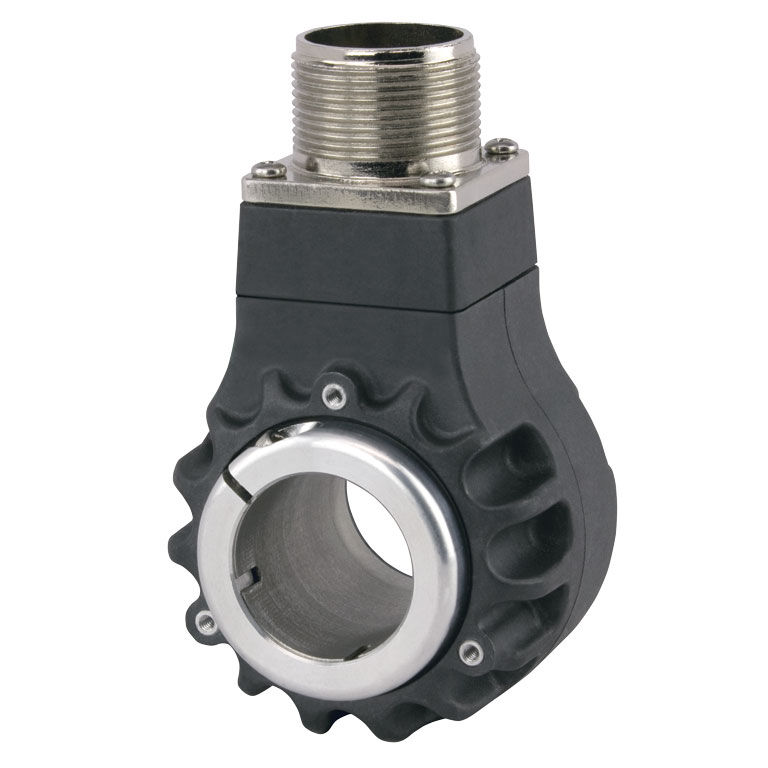

The Model 25T or Model 25H is available in both hollow bore and thru-bore, and features the largest thru-bore available in a 2.5” encoder, mounting directly on shafts as large as 1.125″” (28 mm). With resolutions of up to 10,000 CPR, and frequencies of up to 1MHz, this industrial-strength encoder is perfect for fast revving motors. The 25T features the next generation of EPC’s proprietary Opto-ASIC sensor, which provides superior accuracy and precision counts. The injection molded housing, made from EPC’s custom blend of nylon composites, is grooved with “”cooling fins”” and can take the extreme heat of the motion control industry. This 2.5” encoder is ideal for replacing HS20, HS25, and HS35 style encoders. With sealing available of up to IP66, many rugged flexible mounting options, and a corrosion-resistant option, the Model 25T can perform in demanding industrial environments. EPC is known for our fast lead times. We can produce your custom encoders faster than most suppliers’ standard products. Contact us for specific lead times.
Click here to view complete product specifications on www.encoder.com.
